CNC Cutting Fluid Filtration & Cooling System

PTK CNC Cutting fluid Filtration and Cooling system that efficiently removed the excessed heat and drilling mill in very short time. Professional integrated design which enables power saving and quick response to CNC T/T time gap and arrest cutting tools in precisely high pressure fluid driven by kernel control unit.

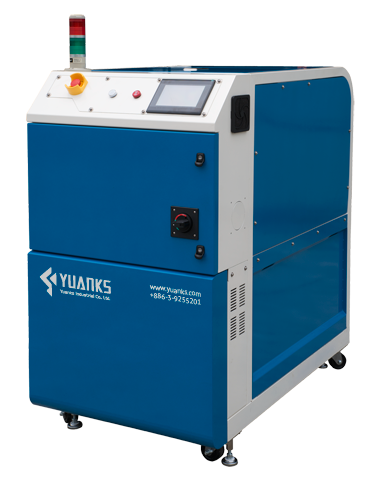

Yuanks PTK-iM Series CNC Cutting Fluid Filtration & Cooling System

PTK-iM Series is a precision equipment that provides professional flushing technology and is equipped with an industrial grade high pressure pump that can easily achieve uninterrupted working hours for long periods of operation. It can be combined with variable frequency controller and automatic flow management and control system to ensure precise control of multi-port water. It has a modular high-quality painting frame and the machine is durable.

  • Anti-vibration and low noise frame design.
  • Hi-performance and long-life H.P Pump.
  • IE/IE3 High performance and energy saving motor.
  • Cutting fluid cooling and filtration.
  • Multi-Ports outlet precisely flow rate management control.
  • Compact and module assemblies.
  • Fast delivery common rail design.
  • User interface Optional (HMI and Traditional UI)
  • Multi-lingual HMI (Professional and Simple)
  • Buffer Tank auto level sensoring control.
  • Advanced algorithms of flow management Kernel.
  • Inverter Jumping and frequency tracking technology.

YUANKS PTK SYSTEM CODE CATEGORIES

  • iM: Full automatic control with HMI operation user interface.
  • iTU: Full automatic control with Traditional user interface.
  • iVS: Full automatic control with HMI operation user interface, single filter bucket design.
  • YZ: Pure mechanical control simple version. Manual pressure regulator or optional inverter.
PTK-iM Series

DIMENSION

MODEL
PRESSURE
(BAR / PSI)
FLOW
(LPM / GPM)
MOTOR
(HP / KW)
ELECTRICAL POWER
(VOLTAGE / FREQUENCY)
CODE DESCRIPTION
(Applicable for Oil & Water base Fluid)
339-iM
30 bar / 435 psi
32 lpm / 8.5 gpm
3 hp / 2.2 kw
AC220V / AC380V / 50/60HZ / 3Φ







iM: Full automatic with HMI
iTU: Full automatic with conventional UI Direct driven
iVS: Simple Semi-automatic with HMI
3152-iM
150 bar / 2175 psi
6 lpm / 1.6 gpm
3 hp / 2.2 kw
AC220V / AC380V / 50/60HZ / 3Φ
559-iM
50 bar / 725 psi
32 lpm / 8.5 gpm
5 hp / 3.7 kw
AC220V / AC380V / 50/60HZ / 3Φ
5153-iM
150 bar / 2175 psi
11 lpm / 2.9 gpm
5 hp / 3.7 kw
AC220V / AC380V / 50/60HZ / 3Φ
7513-iM
50 bar / 725 psi
50 lpm / 13.2 gpm
7.5 hp / 5.5 kw
AC220V / AC380V / 50/60HZ / 3Φ
789-iM
80 bar / 1160 psi
32 lpm / 8.5 gpm
7.5 hp / 5.5 kw
AC220V / AC380V / 50/60HZ / 3Φ
7107-iM
100 bar / 1450 psi
25 lpm / 6.6 gpm
7.5 hp / 5.5 kw
AC220V / AC380V / 50/60HZ / 3Φ
9613-iM
65 bar / 942 psi
52 lpm / 13.8 gpm
10 hp / 7.5 kw
AC220V / AC380V / 50/60HZ / 3Φ
9712-iM
75 bar / 1088 psi
45 lpm / 12.0 gpm
10 hp / 7.5 kw
AC220V / AC380V / 50/60HZ / 3Φ
9728-iM
120 bar / 1088 psi
28 lpm / 7.5 gpm
10 hp / 7.5 kw
AC220V / AC380V / 50/60HZ / 3Φ
